Intel Core i7-2630QM Processor (6M Cache, 2.00-2.90 GHz) (Q1CN ES)

Availability: Out of stock

Regular Price: $190.00

Special Price $170.00

Lead Time: 1~2 days (for retail orders)

Quick Overview

Intel Core i7-2630QM Processor (6M Cache, 2.00-2.90 GHz) .Q1CN ES (QS version) Processor.

i7-2630QM

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Intel Core i7-2630QM Processor (6M Cache, 2.00-2.90 GHz) (Q1CN ES)

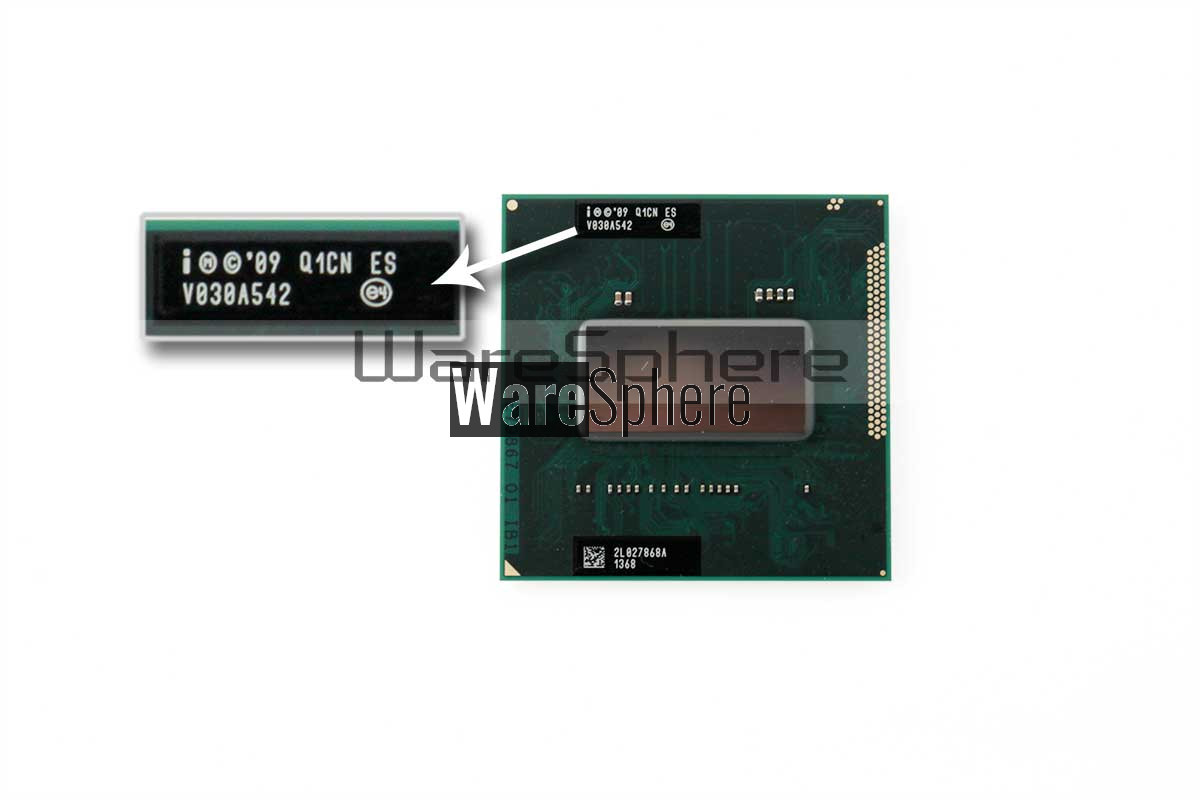

Model:Q1CN ES (QS version) = Qualification Sample = Final ES = 99.999% same to OEM Mass Production Version

Compatibility:

  • Only compatible with new HM65/HM67/QM67 Chipsets
  • Not compatible with PM55/GM55 of first generation Core-i laptops

Specification

Launch Date

Q1'11

Processor Number

i7-2630QM

# of Cores

4

# of Threads

8

Clock Speed

2 GHz

Max Turbo Frequency

2.9 GHz

Intel® Smart Cache

6 MB

Bus/Core Ratio

20

DMI

5 GT/s

Instruction Set

64-bit

Instruction Set Extensions

AVX

Embedded Options Available

No

Lithography

32 nm

Max TDP

45 W

Max Memory Size (dependent on memory type)

8 GB

Memory Types

DDR3-1066/1333

# of Memory Channels

2

Max Memory Bandwidth

21.3 GB/s

ECC Memory Supported

No

Processor Graphics

Intel® HD Graphics 3000

Graphics Base Frequency

650 MHz

Graphics Max Dynamic Frequency

1.1 GHz

Graphics Output

eDP/DP/HDMI/SDVO/CRT

Intel® Quick Sync Video

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Insider™

Yes

Intel® Wireless Display

Yes

Intel® Flexible Display Interface (Intel® FDI)

Yes

Intel® Clear Video HD Technology

Yes

Dual Display Capable

Yes

Macrovision* License Required

No

PCI Express Revision

2.0

PCI Express Configurations

1x16, 2x8, 1x8+2x4

# of PCI Express Ports

1

TJUNCTION

100 C

Package Size

37.5mm x 37.5 (rPGA998)

Graphics and IMC Lithography

32 nm

Sockets Supported

FCPGA988

Low Halogen Options Available

Yes

Intel® Turbo Boost Technology

2.0

Intel® vPro Technology

No

Intel® Hyper-Threading Technology

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

No

Intel® Trusted Execution Technology

No

AES New Instructions

Yes

Intel® 64

Yes

Intel® Anti-Theft Technology

Yes

Intel® My WiFi Technology

Yes

4G WiMAX Wireless Technology

Yes

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Intel® Demand Based Switching

No

Thermal Monitoring Technologies

Yes

Intel® Fast Memory Access

Yes

Intel® Flex Memory Access

Yes

Execute Disable Bit

Yes

Additional Information

Manufacturer Intel
Manufacturer Part Number i7-2630QM
