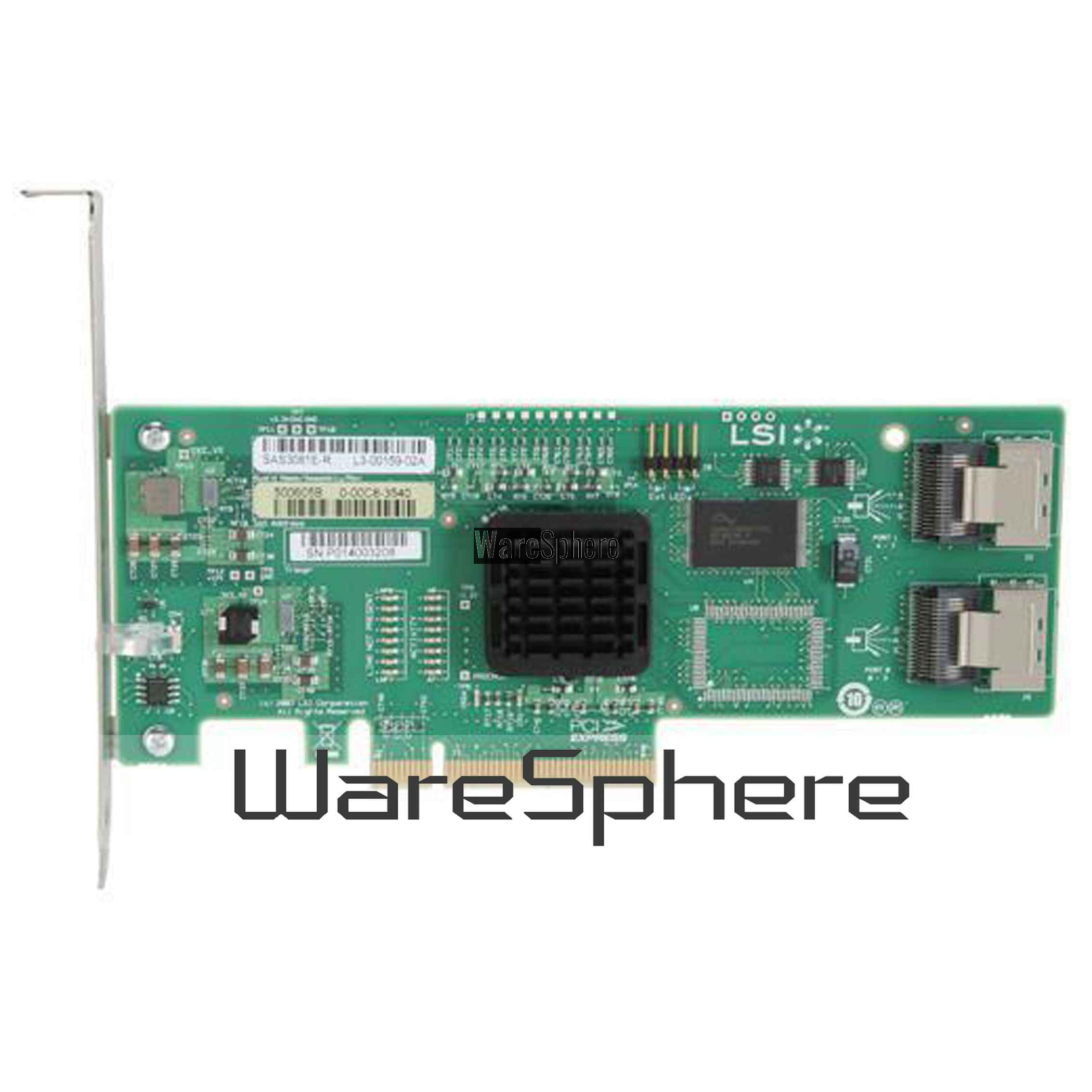

LSI Internal SAS 9211-8i 2008E 3Gb PCI-Express 1.1 RAID Controller Card SAS3081E-R

LSI Internal SAS 9211-8i 2008E 3Gb PCI-Express 1.1 RAID Controller Card

original LSI Internal SAS 9211-8i 2008E 6Gb PCI-Express 1.1 RAID Controller Card

Model: SAS3081E-R

Type: SATA / SAS

Internal Connectors: 2 x miniSAS

Interface: 6 Gb/s per port

RAID: RAID 0/1/1E/10E

Operating Systems Supported:

• Microsoft Windows 2000, Server 2003 32-bit (x86 and AMD64), and XP
• Red Hat Linux RHEL 3
• Novell Netware
• SuSE Linux/SLES
• Sun SPARC Solaris 2.6 thru 2.10

Dimensions: 6.6" x 2.5" (Low Profile)

Features:

• Two internal miniSAS connectors
• Ultimate SAS/SATA flexibility from 8 internal ports
• Connects to both SAS and SATA Hard Disks Drives
• Fusion-MPT architecture Integrated RAID 0, 1, 1E, and 10E
• Allows up to 244 total end-point devices
• Supports all major Operating Systems
• Delivers 2400 MB/s to enclosures, 4800 MB/s full duplex
• Low-Profiles MD2 form factor PCI card
